Technical Parameters

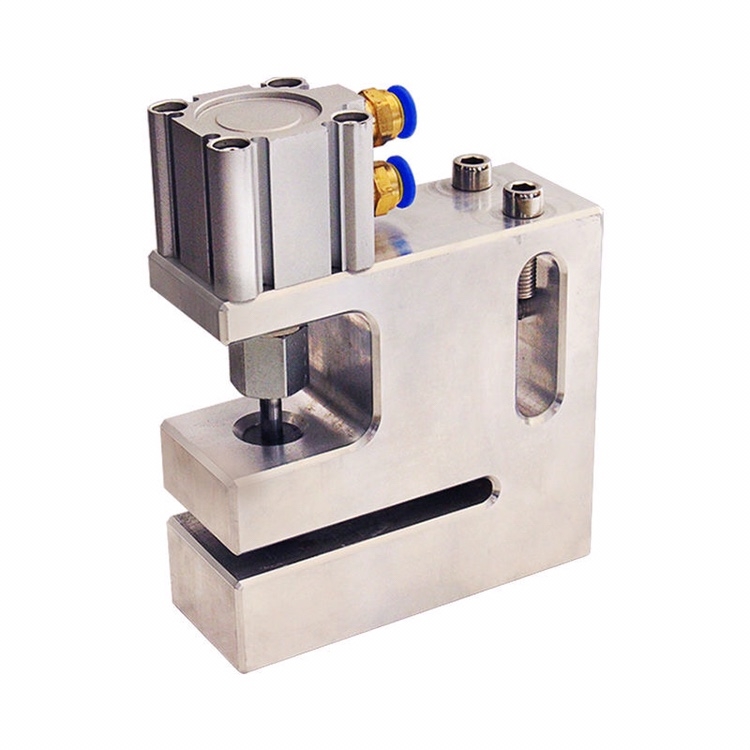

Model | ETA-RM2402A |
Working Speed | Max 180 Punch/min |
Frame Material | Aluminum Alloy/Die Steel |
Hole Type | Round Hole |
Film Thickness | 0.02-0.2mm Plastic Film |
Punch Hole Size | Dia. 2/3/4/5/6/8/10mm |
Compressed Air | 0.3~0.6Mpa |
Device Weight | 1.5kg |
Applications
The Pneumatic Hole Puncher is a kind of hole punching mold which is usually auxiliary to the bag making machine. Usually the control signal is transmitted to the solenoid valve to trigger the device to work. Also we can manually trigger it by foot pedal. Its structure is similar to the cold punching mold. It is mainly used for punching plastic bags and paper products.

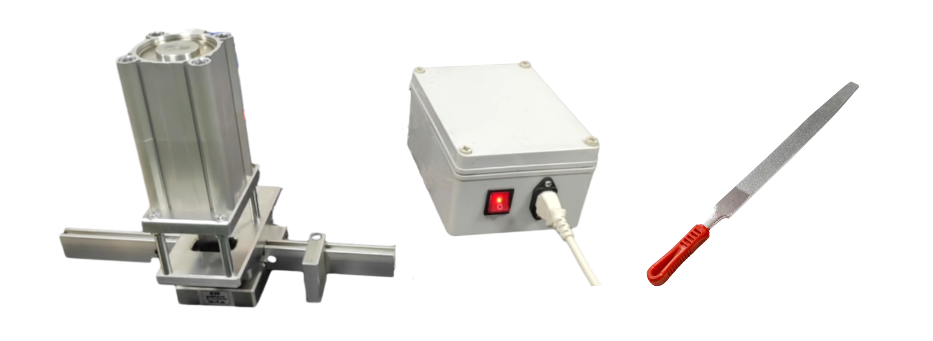

Some Options

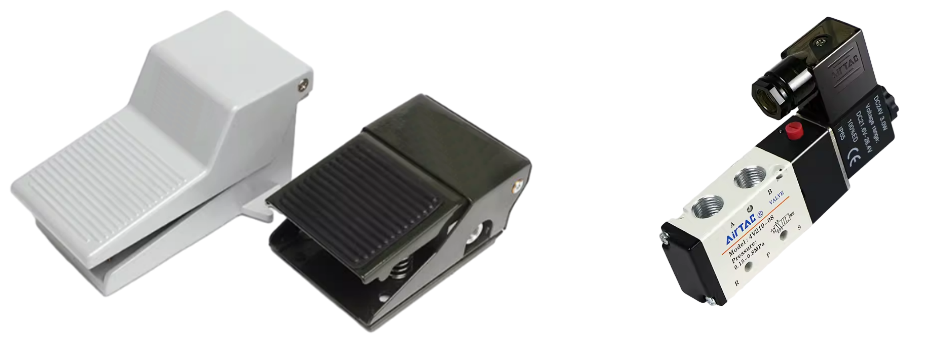

□ Pneumatic Control Pedal 4F210-08/FV420
□ Solenoid Valve 4C210-08

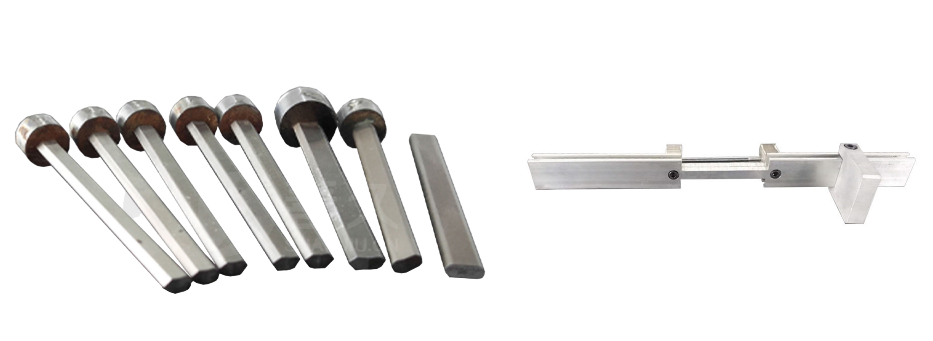

□ Punch Pin Mold
□ Customized Limit Block
□ Filing Tool for Mold
□ Customized Sensor/Switch Trigged Puncher

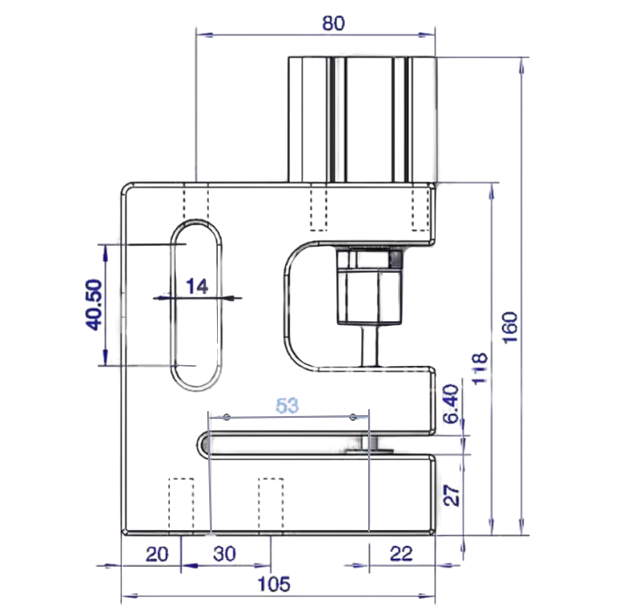

Device Size Reference

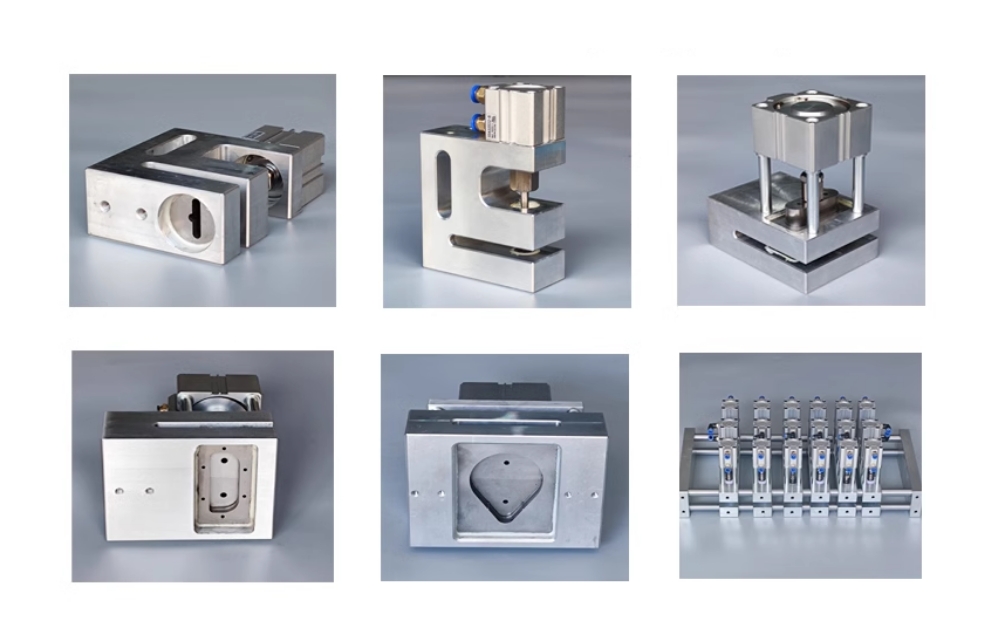

Other Type Device
we can customize according to your request.
