Technical parameters
| Model | ETA-SP2000 |
|---|---|
| Standard Size (L x W x H) | 2200x2200x1900mm Standard |
| Customized Size | Confirmed by Drawings |
| Material | 304 Stainless Steel |
| Assembly | By Stainless Steel Bolt |
| Other Structure | With 304SS Guard Rails & Ladder |
| Height Adjustment | Adjustable Feet (±50mm) |
| Load Weight Limit | 600kg |
| Machine Weight | 350kg |
| Wooden Package Size (L x W x H) | 2250x2250x650mm 400KGS |
Aplications
It is mainly used to support the related weighing equipment above the machine, such as combination scales, linear scales, vibratory discharging pans and related discharging system, as well as to support the conveying related auxiliary equipment, such as independent vibratory feeders and screw feeders.
At the same time, the platform can provide operating space for operators and maintenance personnel to inspect and maintain. In some places where the use of space is limited, it can be spaced out to a second floor to improve the capacity utilization of the factory. Widely used in related food processing plants, chemical equipment plants, laboratories and hospitals.

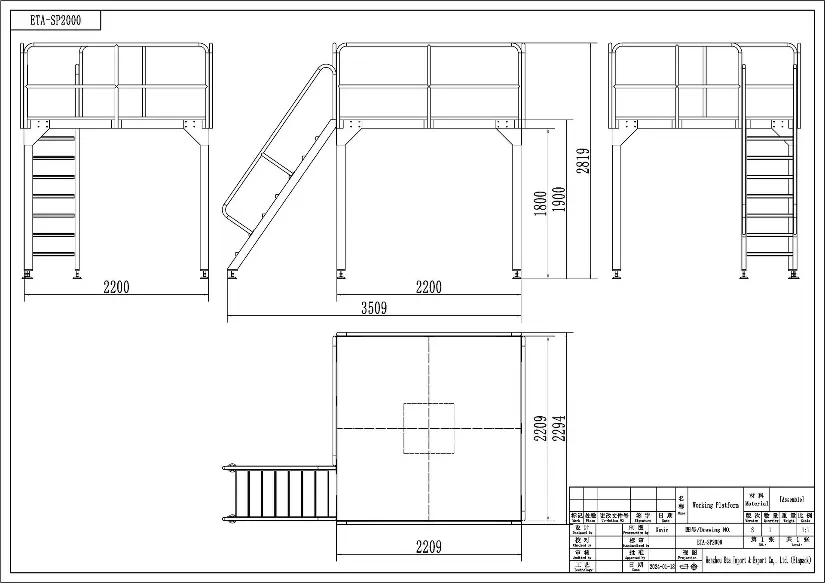

Machine Drawings

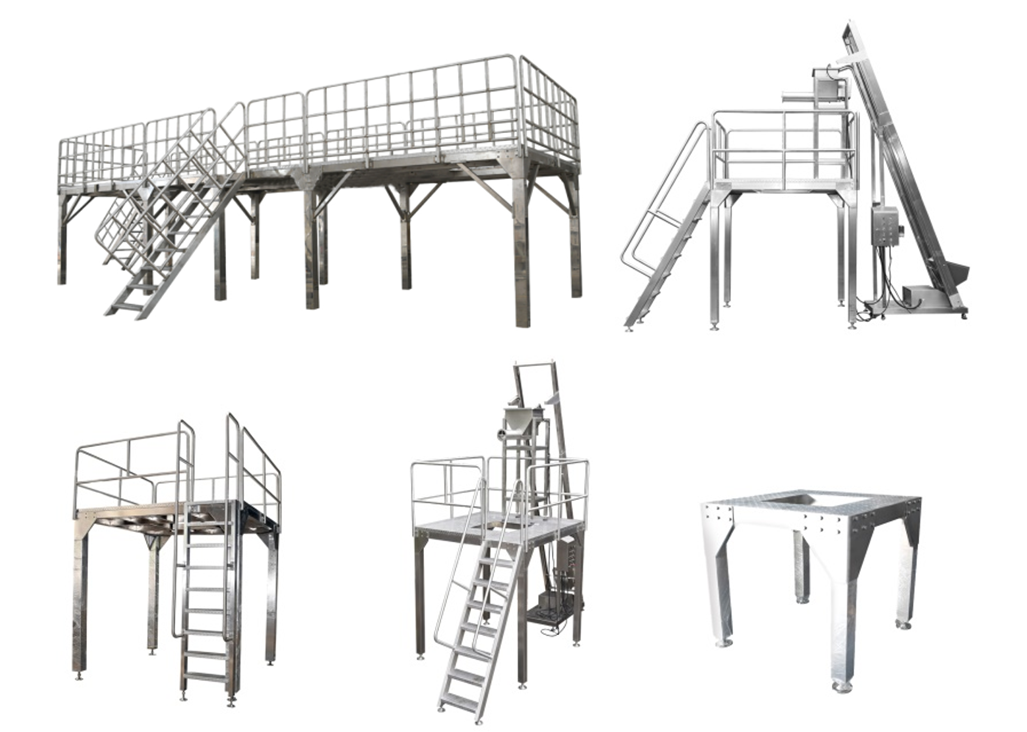

Other Customized Type
