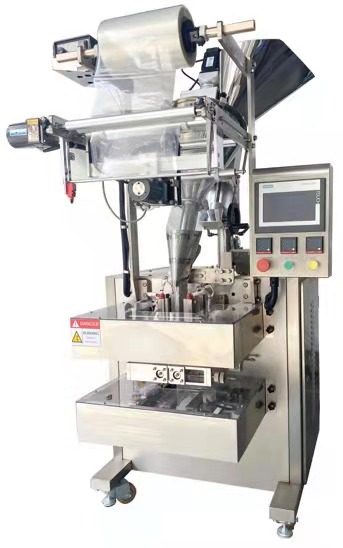

Compact Vertical Form Fill Seal Machine

ETA-PV320P

Brief Introduce

ETA-PV320P

The Compact VFSS machine is used for small sachet packing. This model is mainly used for packing powder materials into small sachet. Such as flour, milk powder, protein powder, grain powder, fine chili/spices powder, fine coffee powder etc.

  • Compact, integrated Auger Filler for Powder Measurement
  • Used Brand PLC and Touch Screen for Control System.
  • Control temperature for horizontal and vertical sealer with high accuracy.


More Details ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​G​​​e​t​ ​A ​Q​u​o​t​e​ ​Related Products

More Details

Technical parametersMachine FcunionBag Types Some Typical OptionMachine DrawingsTypical ApplicationFrequently Asked Questions(FAQ)

Technical parameters

Model ETA-PV320P
Bag Type Options 3/4 Side Seal, Pillow Bag
Bag Width 30-135mm
Bag Length 30-150mm
Film Reel Width Max.300mm
Film Reel Diameter Max.Dia.400mm Max.Core Dia.75mm
Packing Speed 10-40 Bags/min
Auger Filler Range 1-10g, 5-50g, 10-100g
Power Supply AC220V/50Hz 2.0Kw
Machine Weight 200kg
Wooden Package Size (L x W x H) 840x1100x1820mm 250-300KGS



Return to Menu ​

Machine Fcunion

The Compact VFSS machine is used for small sachet. This model is mainly used for packing powder materials into small sachet. Such as flour, milk powder, protein powder, grain powder, fine chili/spices powder, fine coffee powder etc.

Return to Menu ​

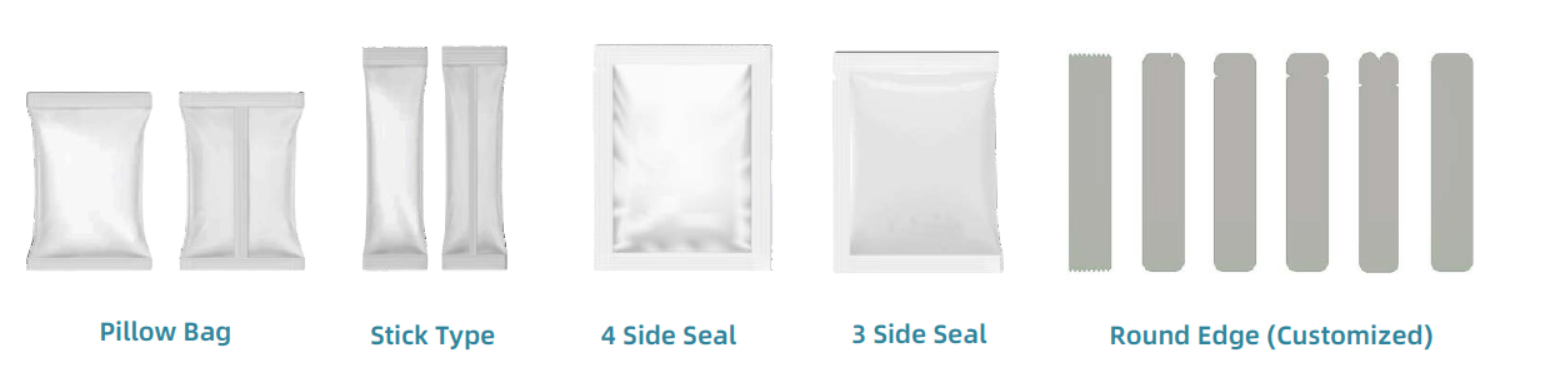

Bag Types

Return to Menu ​

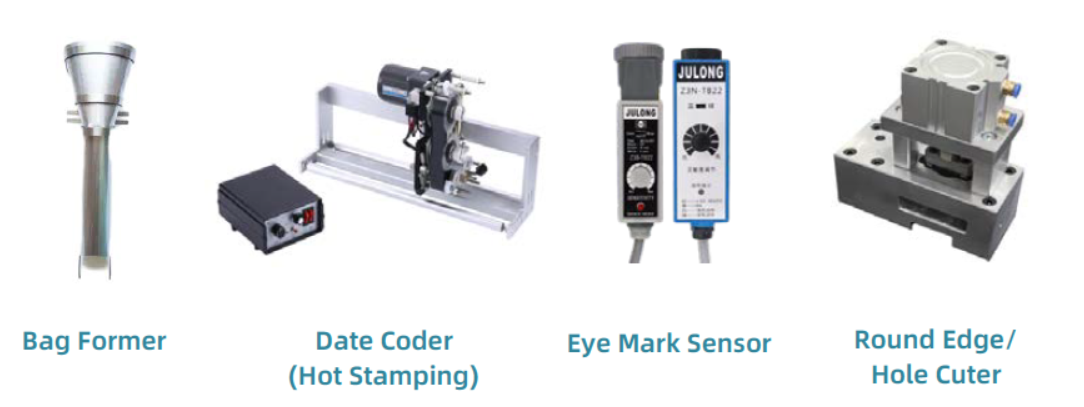

Some Typical Option

Return to Menu ​

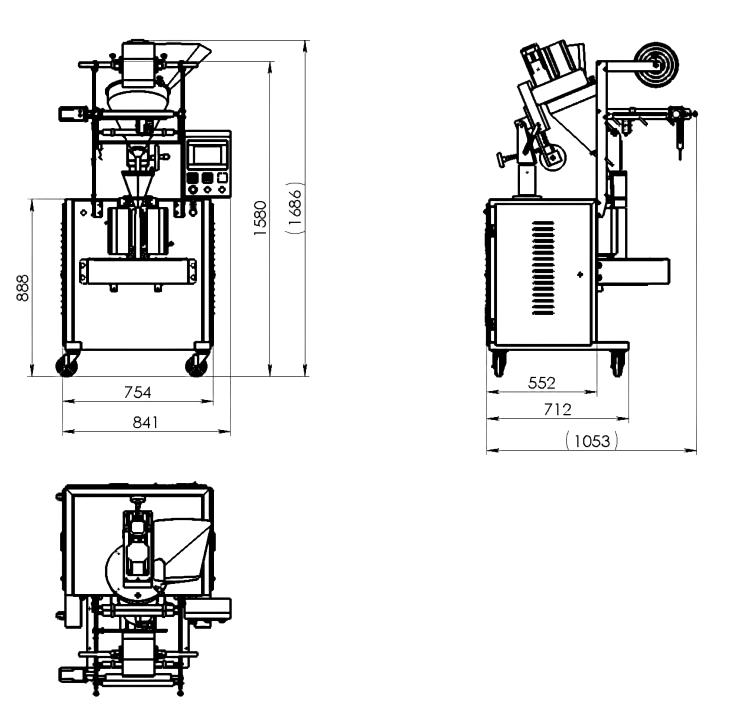

Machine Drawings


Typical Application


Return to Menu ​

Frequently Asked Questions(FAQ)

Introduction of this section.

Return to Menu ​


ETA-PV

Description of this modle machine.

​
