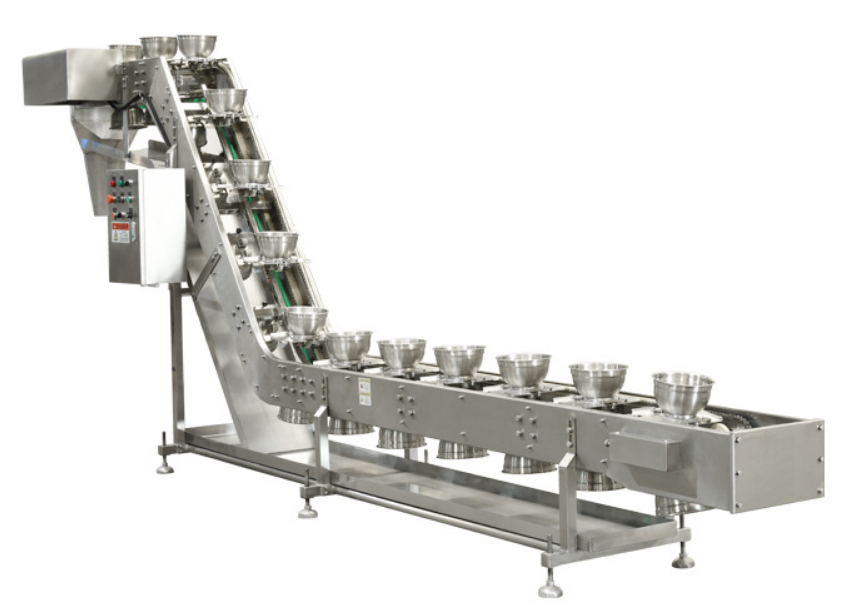

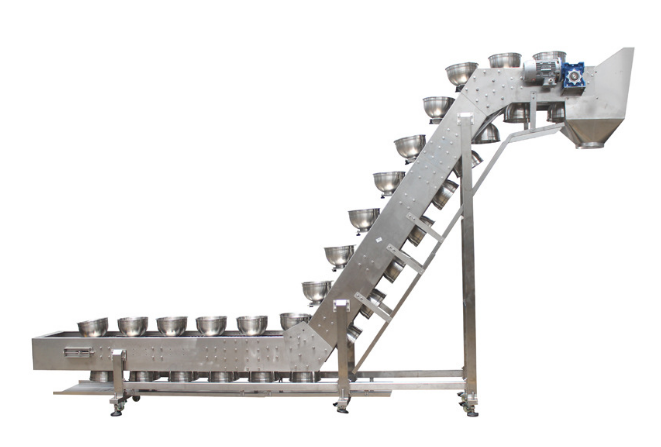

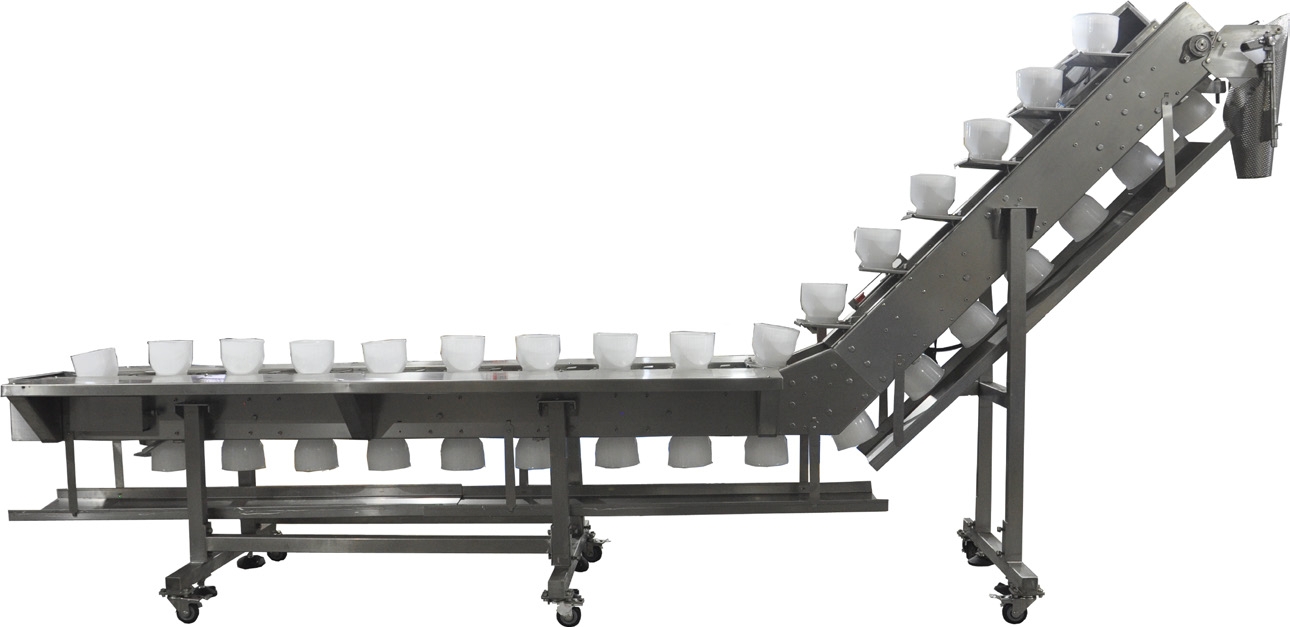

Inclined Bowl Elevator

ETA-SB1500

Brief Introduce

ETA-SB1500

The Bowl Elevator is mainly used for the lifting and conveying of granular materials. It’s good for transferring some sticky and needed manually feeding products. This also usually used for twice elevating due to height limits in workshop. Or for mixing some product in one bowl and then feeding to packing machine.

  • Independent Electrical Control Box, Speed Adjustable and Can Control by Outside Device.
  • Easy to Assemble and Easy to Opearate.
  • Support to be Customized according to the Real Applications.


More Details ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​G​​​e​t​ ​A ​Q​u​o​t​e​ ​Related Products

More Details

Technical parametersAplicationsMachine DrawingsDetails and OptionsFrequently Asked Questions(FAQ)

Technical parameters

Model ETA-SB1500
Standard Size (L x W x H) 4119x867x2187mm Can be Customized
Customized Size Confirmed by Drawings
Speed 10-30BPM
Frame Material 304SS/Gears 304SS
Bucket Material/Volume Plastic ABS/PP 0.8L/1.5L
Power Supply 220V 1.5Kw
Elevator Capacity 1-4m3/h Speed Adjustable
Machine Weight 420kg
Wooden Package Size (L x W x H) 2850x920x840mm 450KGS

Return to Menu ​

Aplications

The Bowl Elevator is mainly used for the lifting and conveying of granular materials such as plastic particles, small strips, and flakes, like potato chips, peanuts, beans, candies, dried fruits, frozen/fresh foods, vegetables, tea and other granular or block items, also it’s good for transferring some sticky and needed manually feeding products. This also usually used for twice elevating due to height limits in workshop. Or for mixing some product in one bowl and then feeding to packing machine.

Return to Menu ​

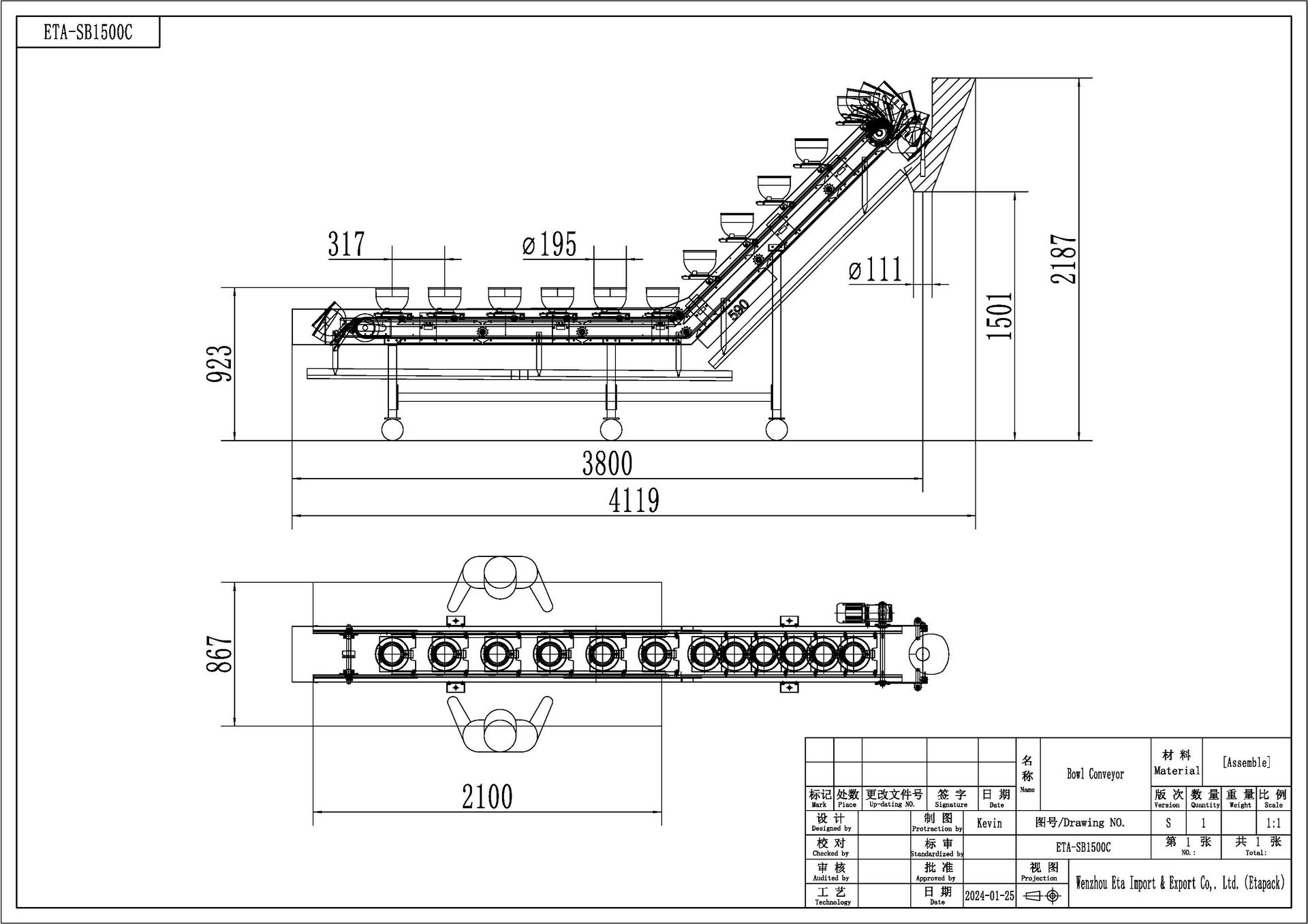

Machine Drawings


Return to Menu ​

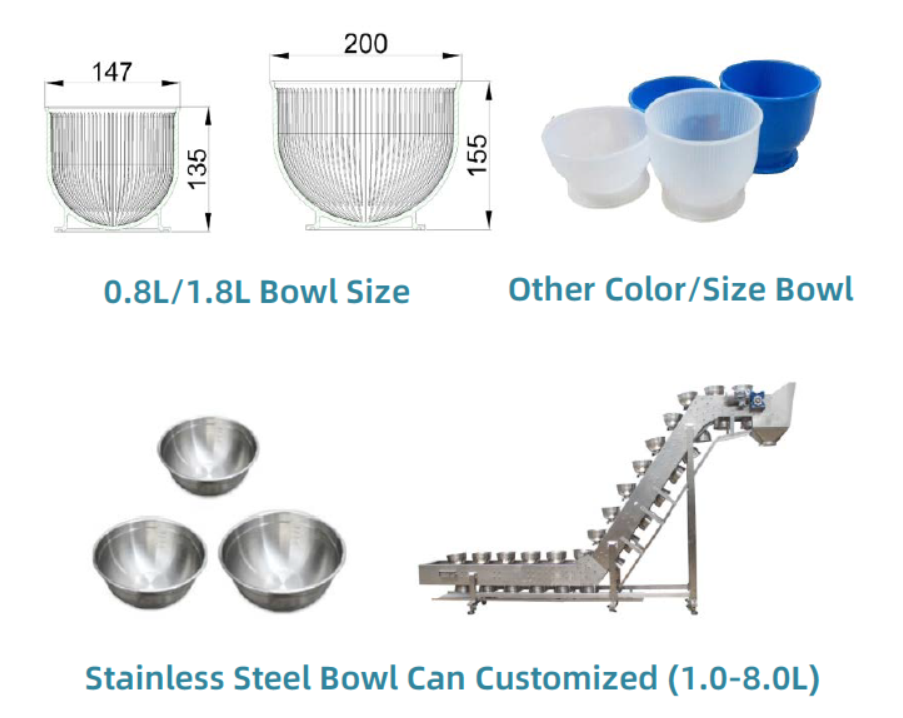

Details and Options

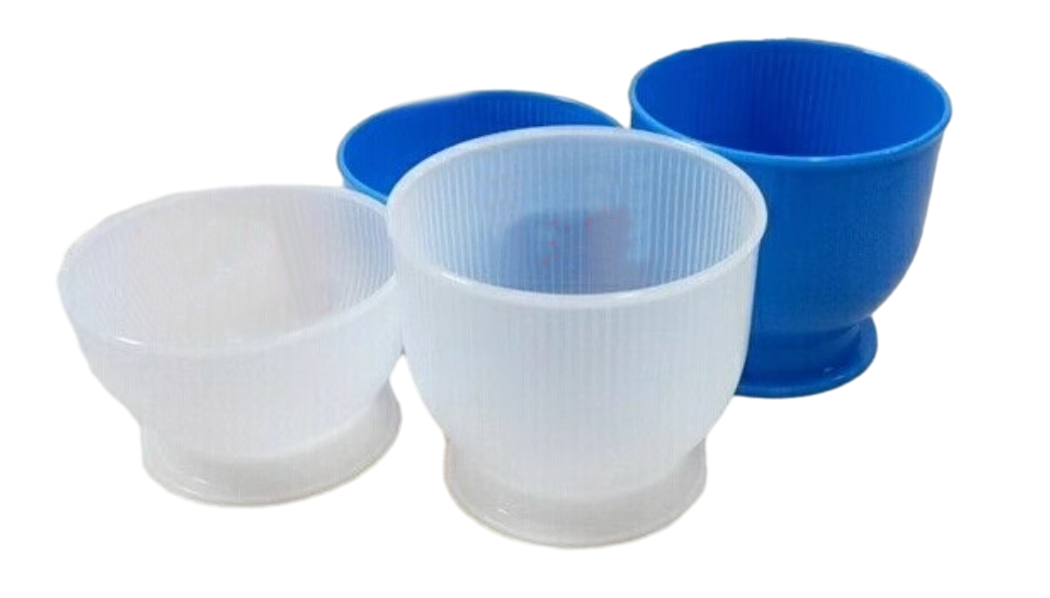

□ Plastic Bolw

□ Stainless steel Bowl


Return to Menu ​

Frequently Asked Questions(FAQ)

Introduction of this section.

Return to Menu ​
