Technical parameters
| Model | ETA-PV-LT400A |
|---|---|
| Bag Type | 2 Side Seal Pillow Bag |
| Packing Speed | 5-12 Bags/min |
| Bag Width | 100-350mm |
| Bag Length | 70-500mm |
| Tube Film Thickness | 0.04~0.15mm |
| Film Reel Diameter | Max.Dia.300mm |
| Control Panel | 7’’ Touch Screen |
| Sealing Wire Width | 2mm |
| Compressed Air | 0.5m3/min 0.6Mpa |
| Power Supply | AC220V/50Hz 1.0Kw |
| Machine Size | 880x1150x1170mm |
Machine Fcunion

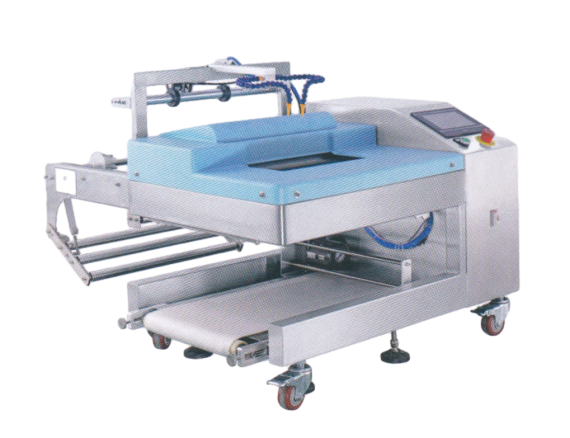

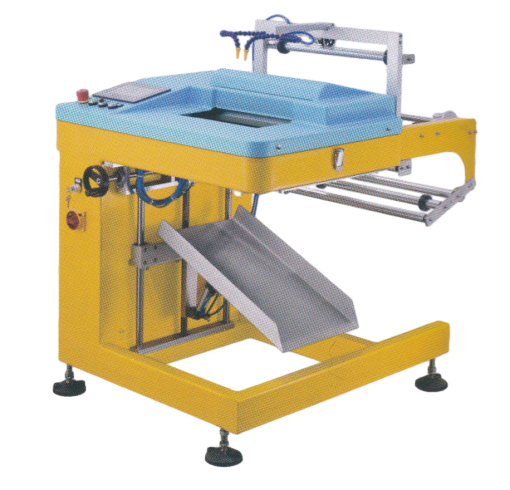

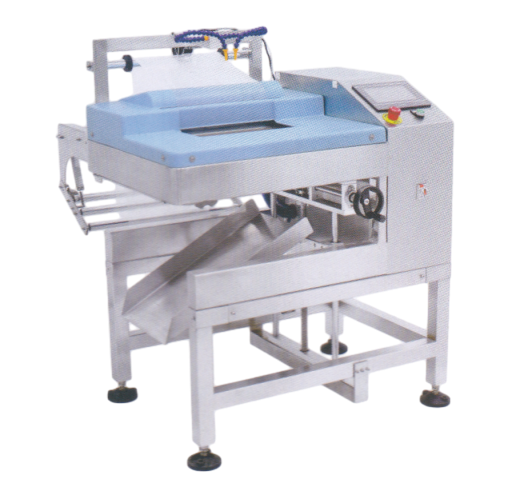

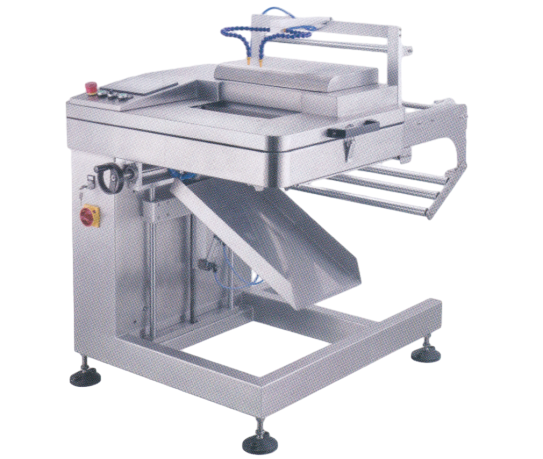

Tube Film Packing Machine is an automatic tube film wrapping machine. Compared to conventional VFFS machines, it can use PE Tube film to make bags, and you don't have to change bag former when you change to other width bags. It is an easy-to-operate and versatile wrapping machine. It can be optionally filled and wrapped manually or connected to an automatic filling machine such as a multi-head scale, linear feeder or vibration bowl feeder to form a complete weighing and wrapping system.
Bag Types

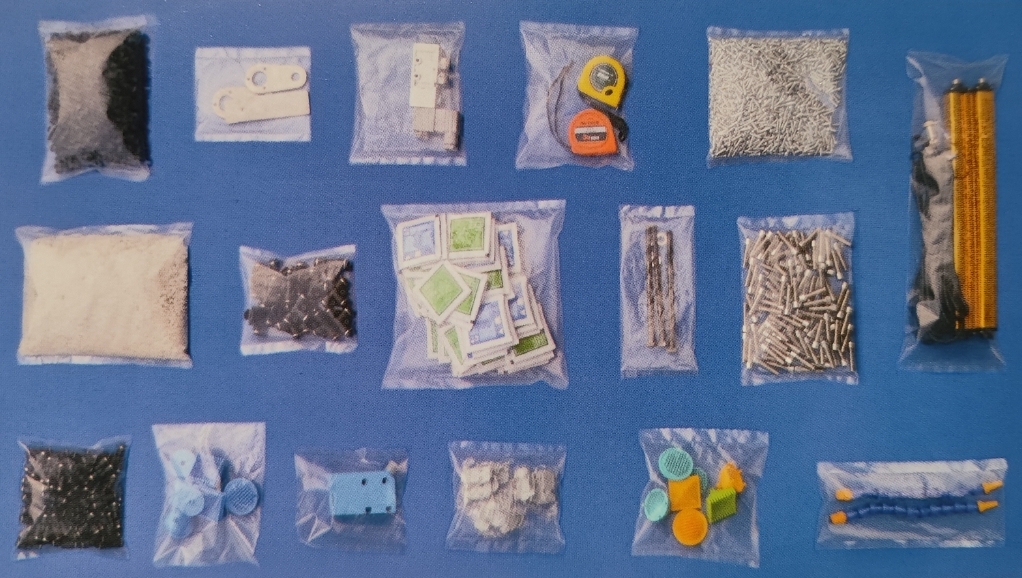

Typical Application
Frequently Asked Questions(FAQ)
Introduction of this section.
