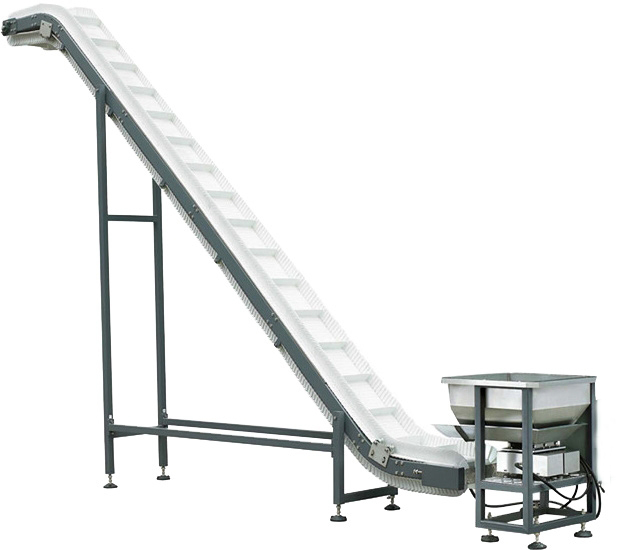

S Shape Inclined Elevator

ETA-SS3000

Brief Introduce

ETA-SS3000

The S Shape Inclined Elevator is mainly used for the lifting and conveying of granular materials. Such as frozen or fresh chicken meat, fresh vegetables, fruits，candies，potato chips, snacks, block shape products, and other granular or block items.

  • Independent Electrical Control Box, Speed Adjustable and Can Control by Outside Device.
  • Easy to Assemble and Easy to Opearate.
  • Support to be Customized according to the Real Applications.


More Details ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​G​​​e​t​ ​A ​Q​u​o​t​e​ ​Related Products

More Details

Technical parametersAplicationsMachine DrawingsDetails and OptionsFrequently Asked Questions(FAQ)

Technical parameters

Model ETA-SS3000
Normal Size (L x W x H) 4845x600x3915mm Can be Customized
Customized Size Confirmed by Drawings
Frame Material 304SS
Plastic Belt Material Plastic PP
Conveyor Width 400mm
Height Adjustment Adjustable Feet (±30mm)
Power Supply 220V 1.5Kw
Elevator Capacity 4-6m3/h Speed Adjustable
Machine Weight 400kg
Wooden Package Size (L x W x H) 3800x1000x1050mm 450KGS




Return to Menu

Aplications

The S Shape Inclined Elevator is mainly used for the lifting and conveying of granular materials. Such as frozen or fresh chicken meat, fresh vegetables, fruits，candies，potato chips, snacks, block shape products, and other granular or block items.

Return to Menu

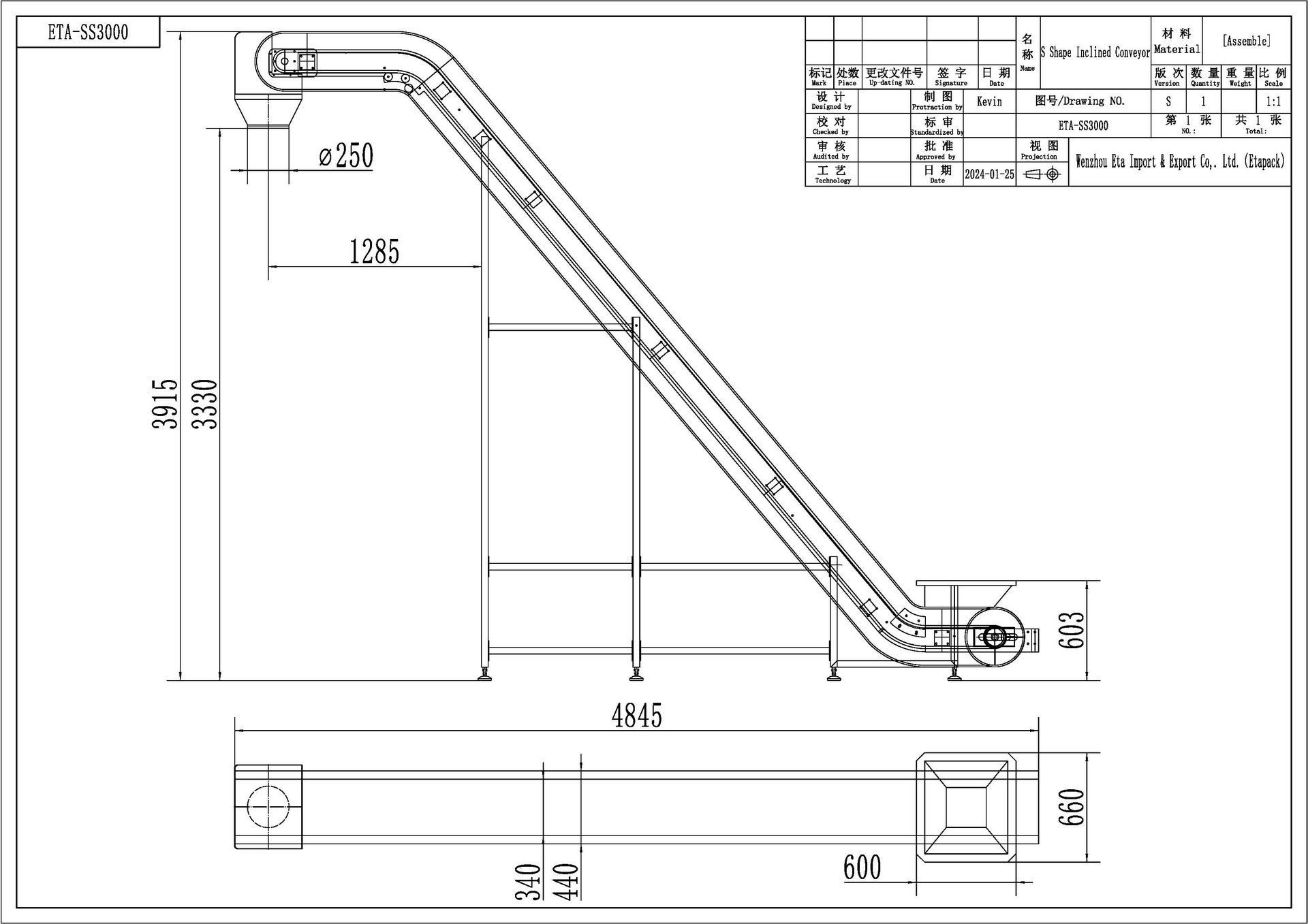

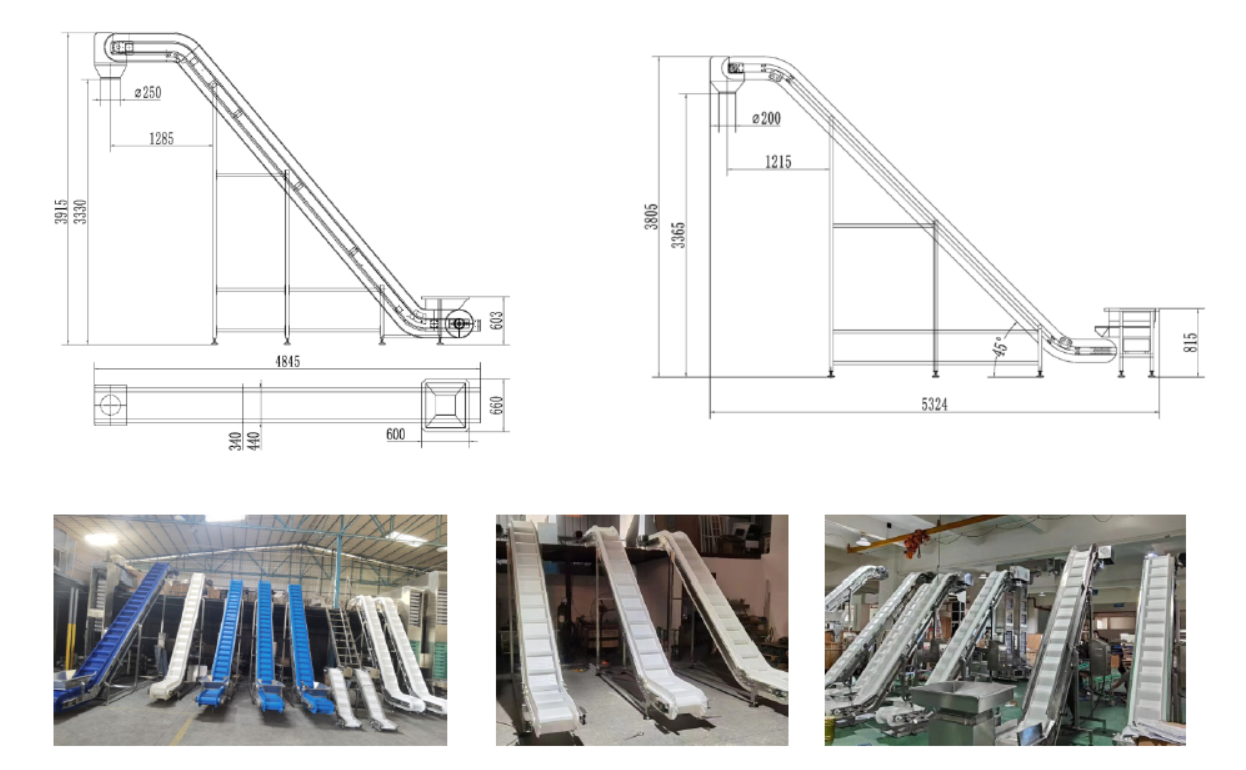

Machine Drawings


Return to Menu

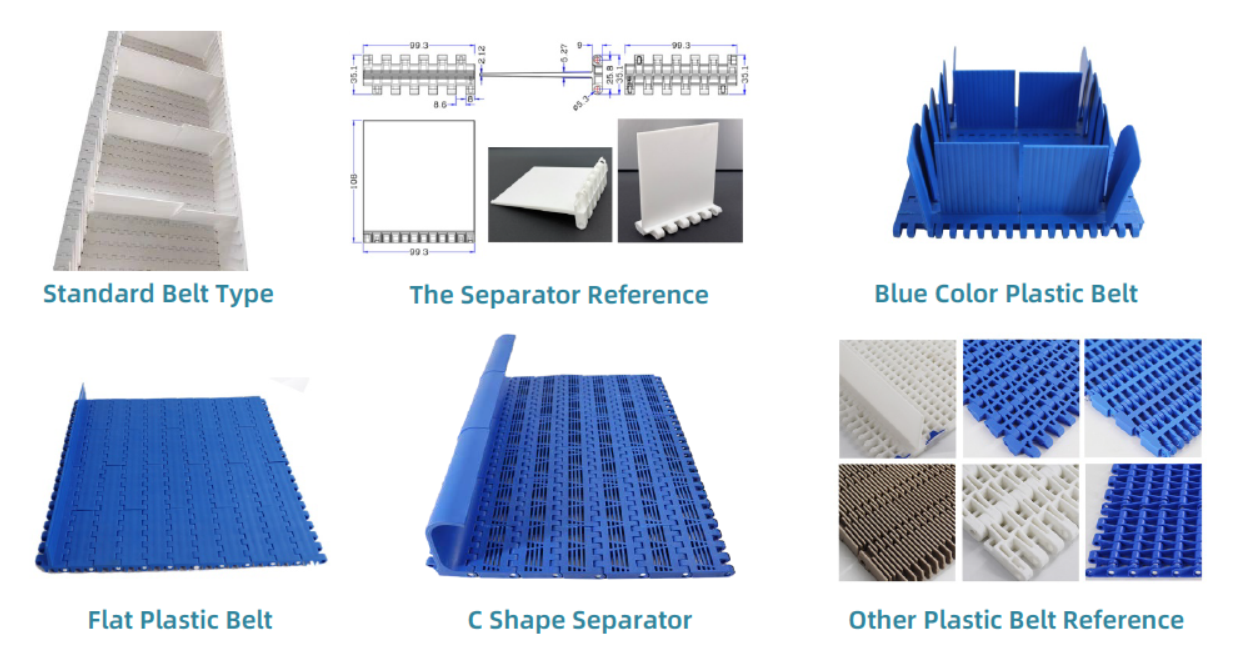

Details and Options







Return to Menu

Frequently Asked Questions(FAQ)

Introduction of this section.
