Technical parameters
| Model | ETA-SV3000 |
|---|---|
| Standard Size (L x W x H) | 3165x760x3610mm Can be Customized |
| Customized Size | Confirmed by Drawings |
| Frame Material | 304SS/Gears 45# |
| Bucket Material/Volume | Plastic ABS/PP 1.8L |
| Other Structure | With 50L Vibration Feeder |
| Height Adjustment | Adjustable Feet (±30mm) |
| Power Supply | 220V 1.5Kw |
| Elevator Capacity | 4-6m3/h Speed Adjustable |
| Machine Weight | 450kg |
| Wooden Package Size (L x W x H) | 2250x2250x650mm 500KGS |
Aplications
The type bucket elevator is mainly used for the lifting and conveying of granular materials. Such as plastic particles, small strips, flakes, like potato chips, peanuts, beans, candies, dried fruits, frozen foods, vegetables, tea and other granular or block items. It also can be used for lifting some type of powder if they are not sticky and easy to clean.

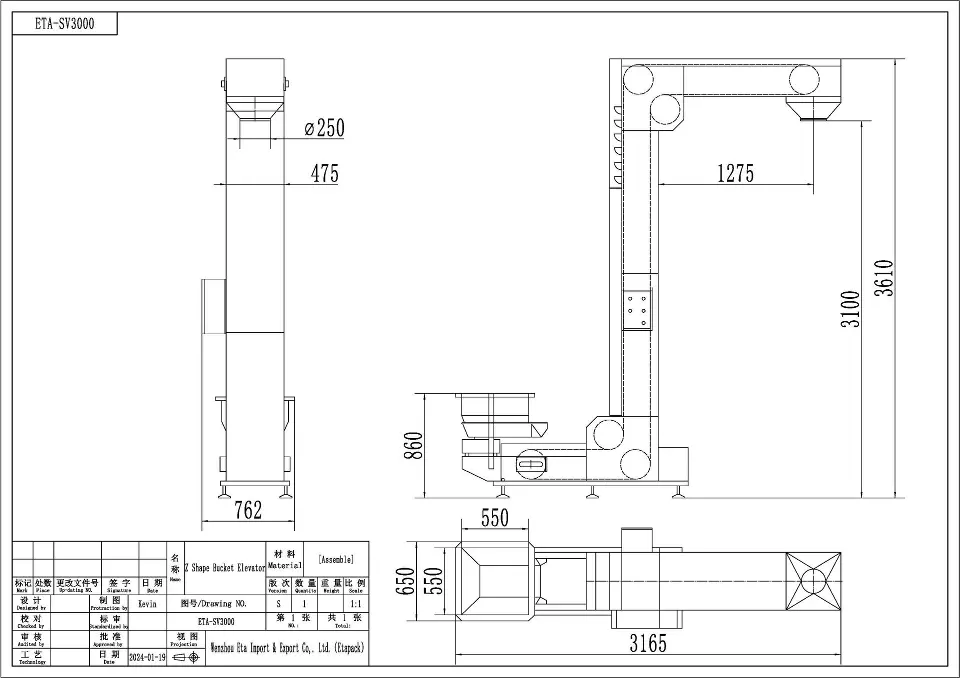

Machine Drawings

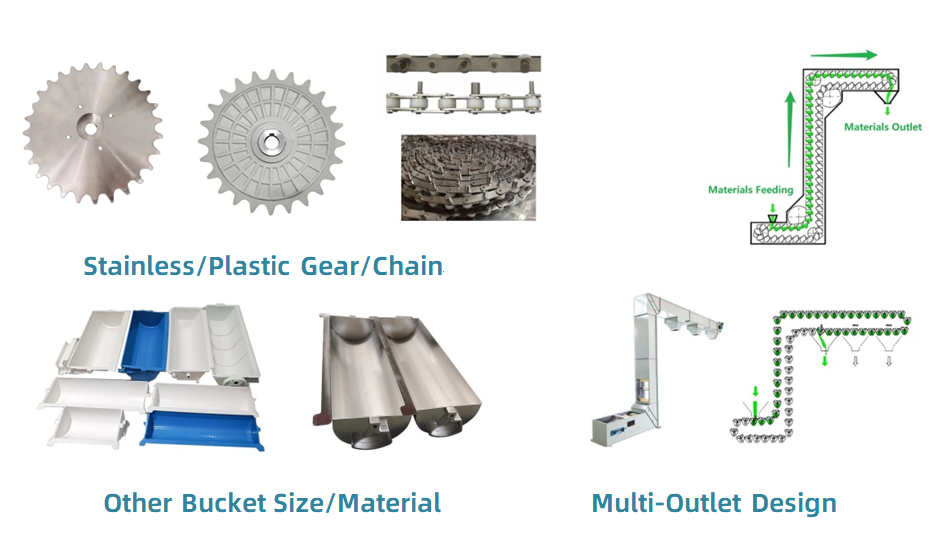

Details and Options
□ Machine frame we can use mild steel/stainless steel. Gear we can use mild steel/stainless steel/enginering plastic. Chain we can use mild steel/stainless steel.

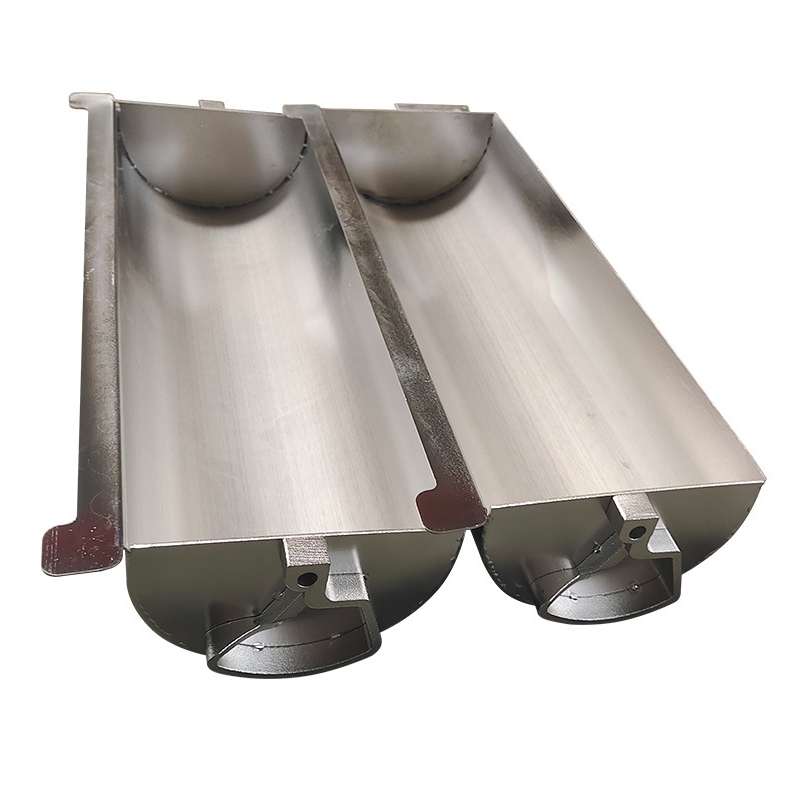

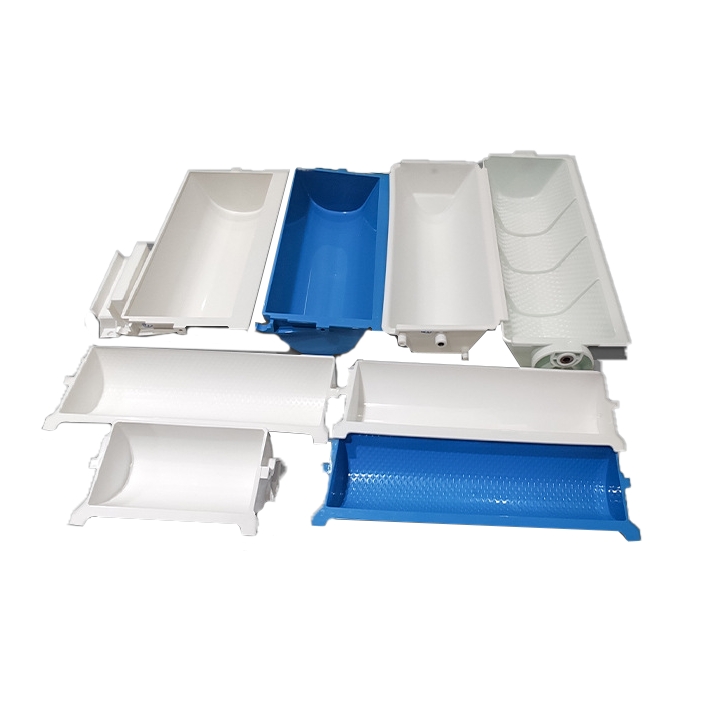

□ Bucket size we have 1.0L/1.8L/3.8L/6.5L with material use ABS/PP/stainless steel.
